Descripción

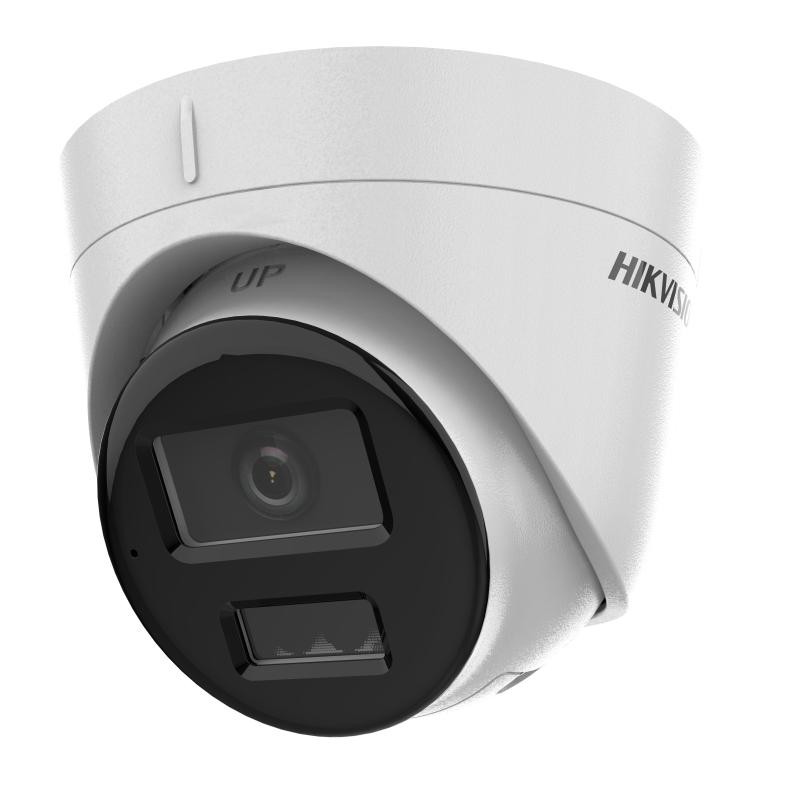

4 MP AcuSense Fixed Dome Network CameraHigh quality imaging with 4 MP resolutionExcellent low-light performance with powered-by-DarkFighter technologyClear imaging against strong backlight due to 120 dB true WDR technologyEfficient H.265+ compression technologyFocus on human and vehicle targets classification based on deep learningBuilt-in microphone for real-time auto security(-SU)Water and dust resistant (IP67) and vandal-resistant (IK10)
CámaraMax. Resolución2688 × 1520Iluminación mínimaColor: 0.003 Lux @ (F1.4, AGC ON), B/W: 0 Lux with IRTiempo de obturación1/3 s to 1/100,000 sDía y NocheIR cut filterSensor de imagen1/3" Progressive Scan CMOSAjuste de ánguloPan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°LenteAperturaF1.4LenteFixed focal lens, 2.8, 4, and 6 mm optionalFocal Length & FOV2.8 mm, horizontal FOV 103°, vertical FOV 55°, diagonal FOV 123°
4 mm, horizontal FOV 83°, vertical FOV 45°, diagonal FOV 98°
6 mm, horizontal FOV 53°, vertical FOV 28°, diagonal FOV 62°
Iris TypeFixedMontura del lenteM12DORIDORI2.8 mm: D: 60.0 m, O: 23.8 m, R: 12.0 m, I: 6.0 m
4 mm: D: 80.0 m, O: 31.7 m, R: 16.0 m, I: 8.0 m
6 mm: D: 120.0 m, O: 47.6 m, R: 24.0 m, I: 12.0 m
IluminadorTipo de luz suplementariaIRRango de luz suplementariaUp to 30 mLuz de suplemento inteligenteYesIR Wavelength850 nmVídeoMain stream50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-stream50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
Third Stream50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
*Third stream is supported under certain settings.
Compresión de videoMain stream: H.265/H.264/H.265+/H.264+
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
*Third stream is supported under certain settings.
Vídeo bitrate32 Kbps to 8 MbpsTipo H.264Baseline Profile/Main Profile/High ProfileTipo H.265Main ProfileBit Rate ControlCBR/VBRCodificación de video escalable (SVC)H.264 and H.265 encodingRegión de interés (ROI)1 fixed region for main stream and sub-streamAudioCompresión de audio-S: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LCVelocidad de bits de audio-S: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)Frecuencia de muestreo de audio-S: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHzFiltro de ruido ambiental-S: YesRedProtocolosTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, WebSocketsVista en vivo simultáneaUp to 6 channelsAPIOpen Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDKUsuario/operadorUp to 32 users. 3 user levels: administrator, operator and userSeguridadPassword protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video InterfaceAlmacenamiento en redNAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
ClienteiVMS-4200, Hik-Connect, Hik-CentralNavegador webPlug-in required live view: IE 10, IE 11
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
ImagenInterruptor de parámetros de imagenYesConfiguración de imagenRotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browserInterruptor día/nocheDay, Night, Auto, ScheduleWide Dynamic Range (WDR)120 dBSNR≥ 52 dBMejora de la imagenBLC, HLC, 3D DNRInterfazEthernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet portOn-Board StorageBuilt-in memory card slot, support microSD/SDHC/SDXC card, up to 512 GBMicrófono incorporado-U: YesAudio-S: 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium;
1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
Alarma-S: 1 input, 1 output (max. 12 VDC, 30 mA)Reset KeyYesEventoEvento BásicoMotion detection (human and vehicle targets classification), video tampering alarm, exceptionEvento inteligenteLine crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggering by specified target types (human and vehicle))
Scene change detection
LinkageUpload to NAS/memory card/FTP, notify surveillance center, trigger recording, trigger capture, send email, audible warningDeep Learning FunctionCaptura de la caraYesGeneralalimentación12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug, reverse polarity protection
PoE: 802.3af, Class 3, 36 V to 57 V, 0.20 A to 0.15 A, max. 6.5 W
DimensiónØ121.4 mm × 92.2 mm (Ø4.8" × 3.6")Dimensión del paquete150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6")WeightApprox. 580 g (1.3 lb.)Con peso del paqueteApprox. 820 g (1.8 lb.)Condiciones de almacenaje-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)Condiciones de inicio y funcionamiento-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)Idioma33 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
Función generalAnti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counterCertificacionesEMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); KC (KN 32: 2015, KN 35: 2015)SeguridadUL (UL 60950-1);
CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013);
CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013);
LOA (IEC/EN 60950-1)
AmbienteCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)ProtecciónIP67 (IEC 60529-2013), IK10 (IEC 62262:2002)
